Mee FogTM
systems have a reputation for being rugged and dependable. They
have been refined over almost three decades of actual use in agricultural
and industrial situations.

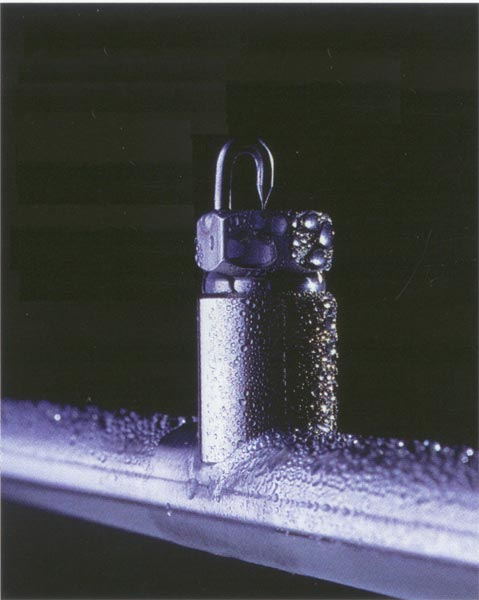

The Mee Fog
nozzle :
 |
 |
| click
either image for a larger picture |
Mee Fog Nozzle

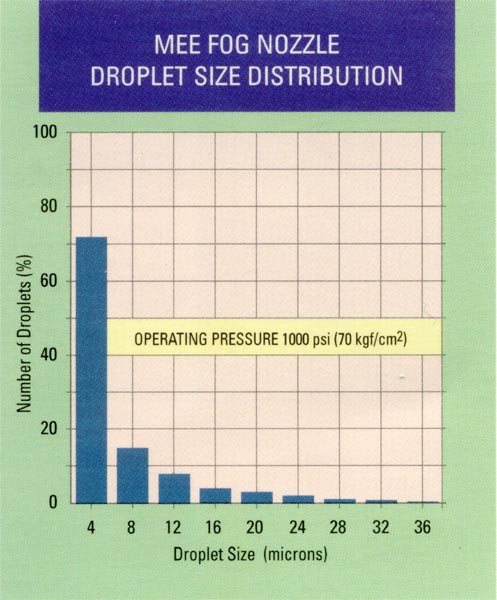

Droplet Size Distribution graph and Pump Unit Chart :
 |
|
Fog
Pump Unit Chart
|
|
Model
Number |
Flow
rate
(gpm) |
Horse
power |
Nozzle
capacity |
Maximum
Moisture Output (lbs/hr)
|
Dimensions
(inches) |
L |
W |
H |
|
FM-50-B270 |
0.5
|
0.5
|
15
|
240 |
24 |
15 |
13 |
|
FM-100-B270 |
1.0
|
0.75
|
30
|
480 |
24 |
15 |
15 |
|
FM-200-B270 |
2.0
|
1.5
|
60
|
960 |
24 |
15 |
15 |
|
FM-300-B310 |
3.0
|
2.0
|
90
|
1440 |
32 |
20 |
16 |
|
FM-400-B310 |
4.0
|
3.0
|
125
|
2000 |
32 |
20 |
16 |
|
FM-700-B1050 |
7.0 |
5.0
|
210
|
3360 |
35 |
20 |
18 |
|
FM-1050-B-150 |
10.5 |
7.5
|
325
|
5200 |
35 |
20 |
18 |
|

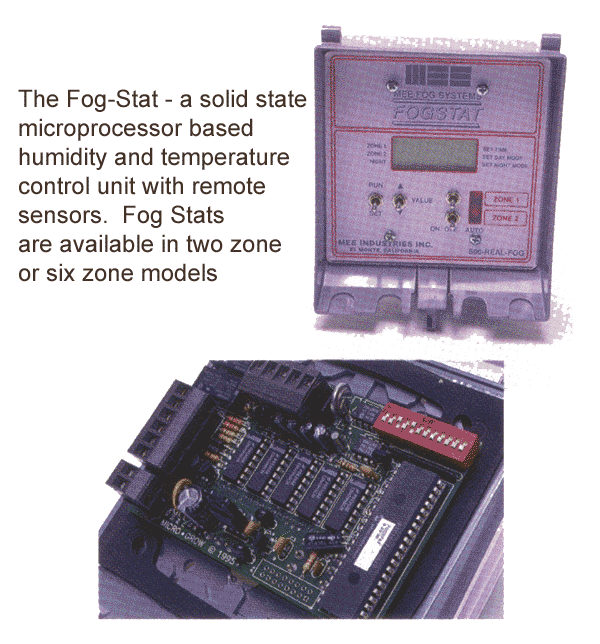

The FogStat
:
The Mee FogTM nozzle is under the constant control of the Fog Stat.
