Water Tank Technical
Information
Potential uses
for the Atlantis Water Tank:
 |
 |
 |

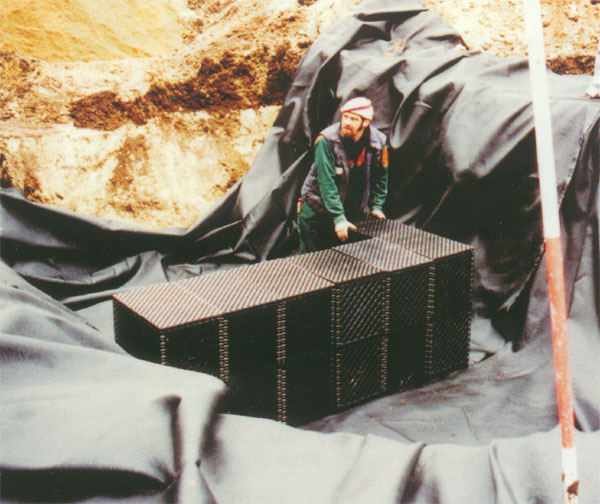

Underground
Water Tanks
click for larger view |

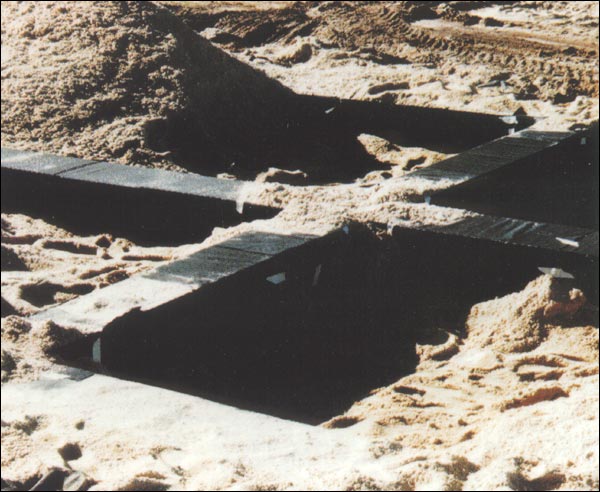

Leach
Drainage for Effluent Disposal
click for larger view |

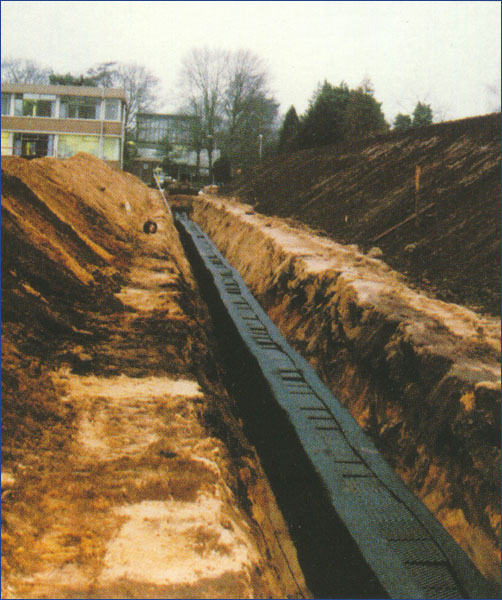

Ecological
Channel
click for larger view |

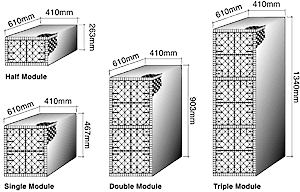

Module specifications
and technical information :
|
SIZE
WxDxH
|
FLOW
RATE
|
|
410
x 263 x 610mm
|
1140L/min
|
|
410
x 467 x 610mm
|
2280L/min
|
|
410
x 903 x 610mm
|
4560L/min
|
|
410
x 1340 x 610mm
|
6840L/min
|
Load Bearing
Capacity : The unconfined load capacity of the Single Module
is 94.52 (kN/m2)
Position
1 is the recommended method of installing tank modules.
Position
2 is not recommended except for pedestrian traffic areas.
